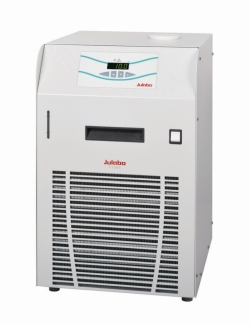

Compact Recirculating Cooler, F-Series
- Environmentally friendly operation with low energy consumption
- No side vents, instruments can be placed right next to other equipment
- All wetted parts made of stainless steel or high grade plastic
- Large, bright LED display
- Compact design and small foot print
- Splash-proof keypad
- Drain tap
- Easy filling
| Material bath: | Stainless steel |
| Temperature stability: | ±0,5 °C |
| Power supply: | 230 V, 50 Hz |
| IP code: | IP 20 |
 | |
9.698 525 |
| Type | Volume bath | Temperature | Max. flow rate l/min | Max. delivery pressure bar | Cooling capacity at 20 °C kW | Ext. dim. (WxDxH) | Weight kg | PK | |
|---|---|---|---|---|---|---|---|---|---|
 | F250Prod.No.9.698 525 | 1.7 ... 2.6 l | -10 ... 40 °C | 15 | 0.35 | 0,25 | 240 x 400 x 520 mm | 27 | 1 |
 | F500Prod.No.9.698 528 | 5 ... 7.5 l | 0 ... 40 °C | 24 | 0.5 | 0,5 | 375 x 440 x 590 mm | 37 | 1 |
 | F1000Prod.No.9.698 526 | 7 ... 9.5 l | 0 ... 40 °C | 23 | 1 | 1 | 375 x 490 x 640 mm | 45 | 1 |
